Main functions of the host:

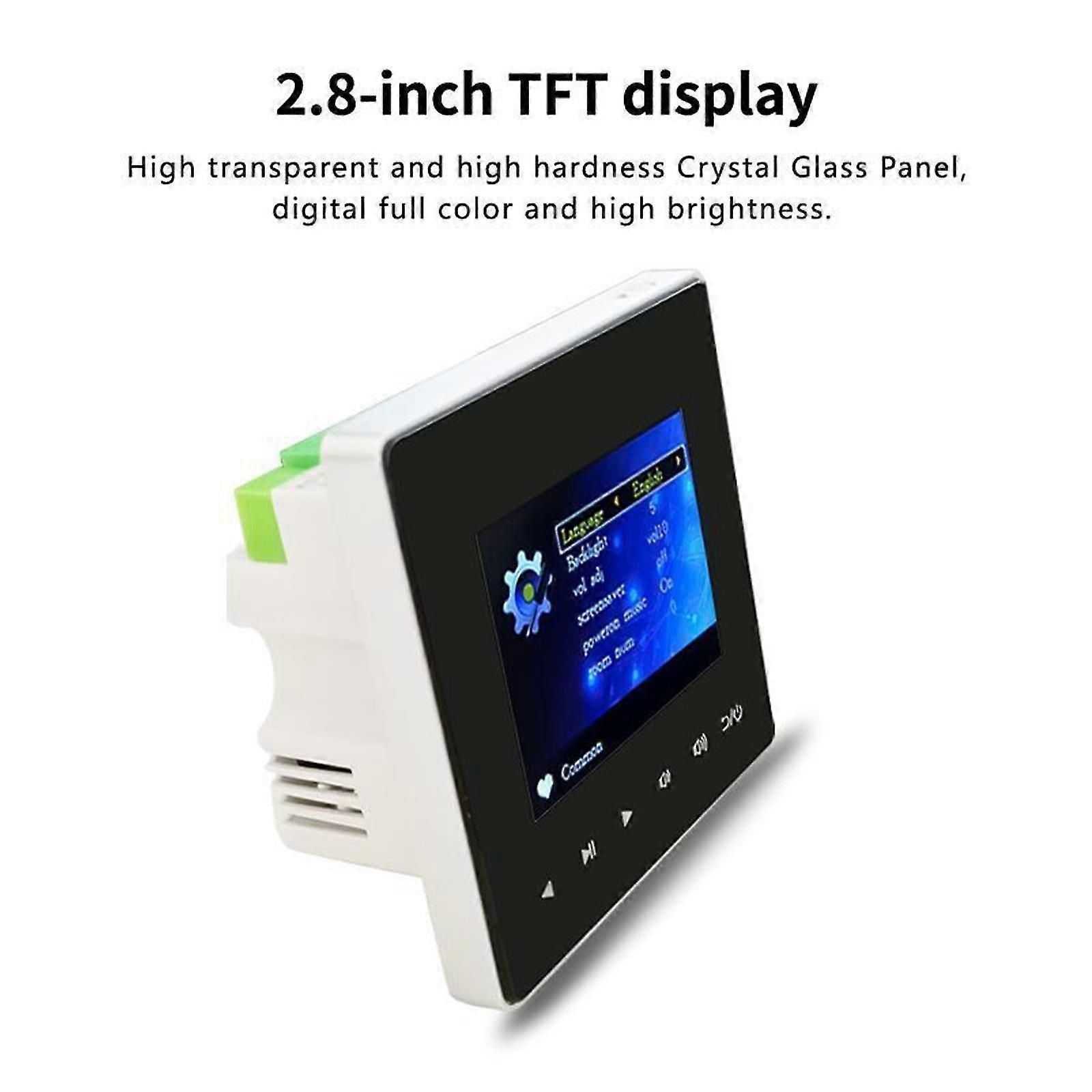

1. High transparency and high hardness crystal panel, digital full-color and high brightness 2.8-inch TFT display.
2. Audio formats: Supports MP3, WAV, WMA, FLAC, APE, DTS, AAC, AC3, OGG, etc., and supports LRC display.
3. Video format: Supports MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB, AVI, 3GP, H.264, etc.
4. Radio function: Built in full digital automatic FM radio, with 30 radio channels stored.
5. Photos: Supports photo browsing in formats such as JPEG, BMP, GIF, PNG, etc.
6. Bluetooth function: Supports matching mobile phones with other external Bluetooth devices for audio playback, supports manual and automatic Bluetooth activation (suitable for hotel use).
7. External audio input: Supports external audio input machines for amplifying output.
8. Support video output: Supports 720P high-definition video output to TV.
9. Time calendar: Supports clock and calendar display functions.
Description:

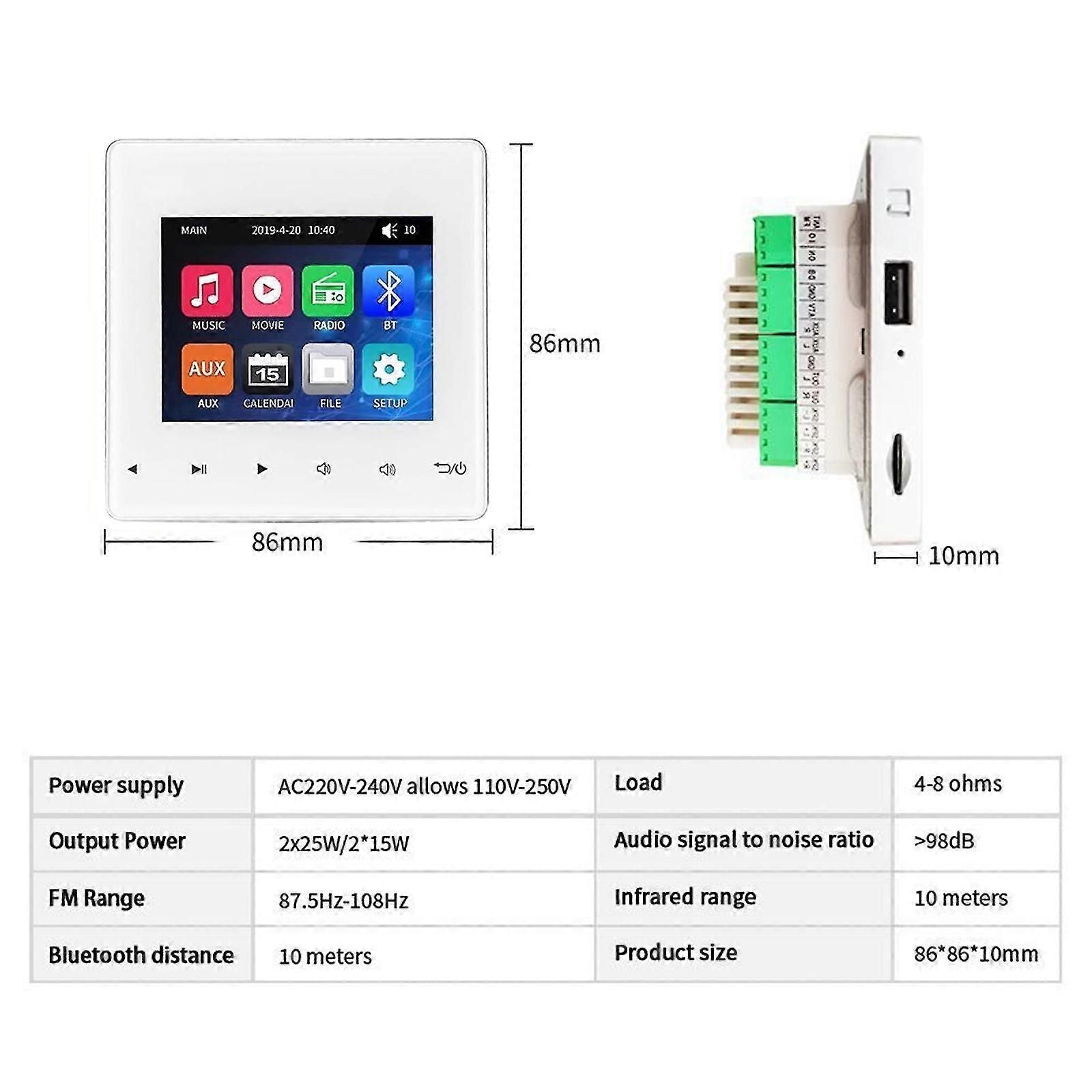

2.8-inch Display, 320*240 Resolution
Key Touch
Power Supply Mode: AC 110-250V
Output Power: 2*15W(Digital power amplifier)
Audio Inputs one set; Output one set
Video Player
Timing output: one set
Bluetooth: 4.0
Bluetooth working distance: 10 meters
Infrared remote control distance: 10 meters
Frequency response: 20Hz-20KHz
T.H.D: 0.03%
SNR: 98dB
Installation: 86 standard wire box, front wall
Product size: 86*86*10mm
Wire Box Opening Size: 86*86*57mm

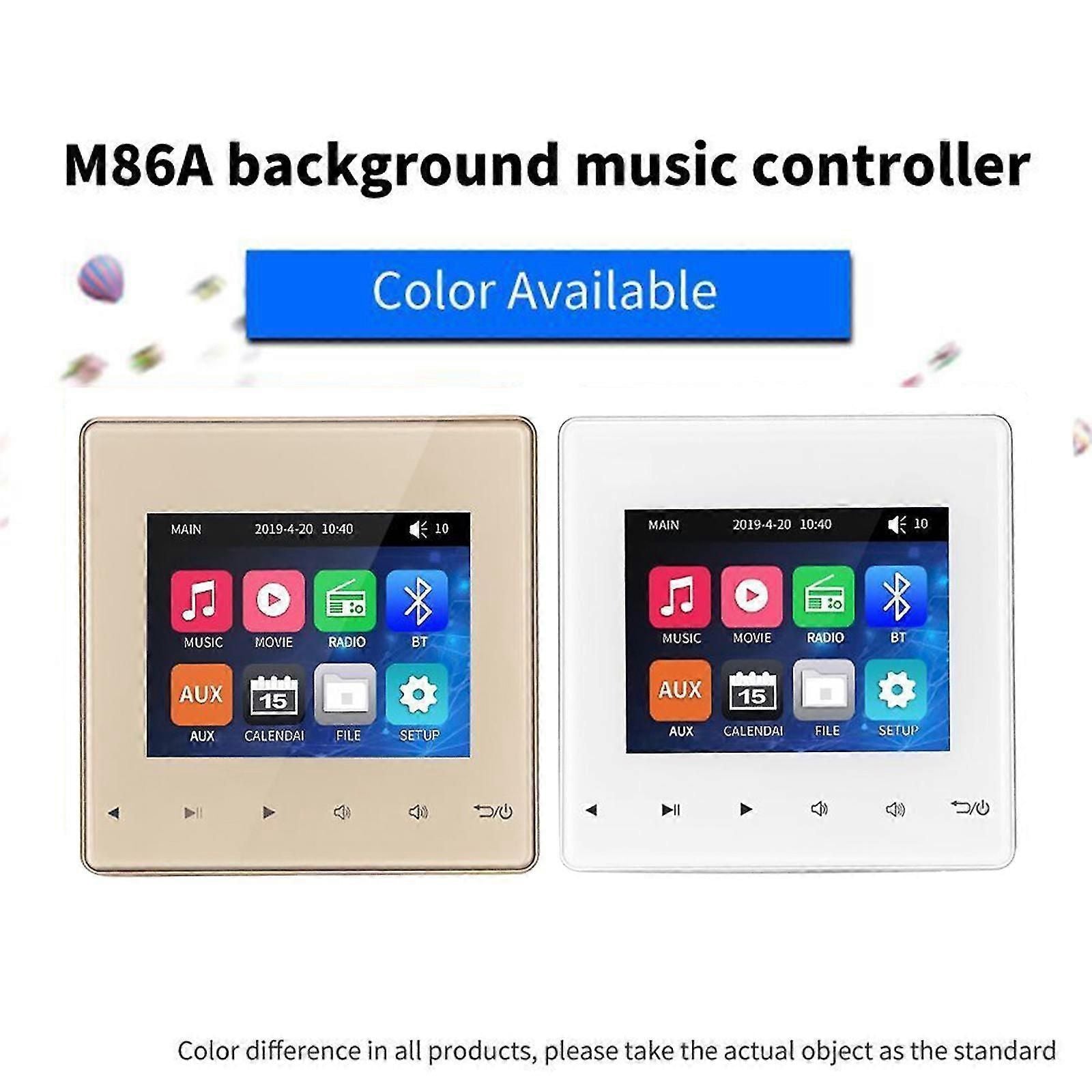

Color: White/Gold
The horn parameters are as follows:

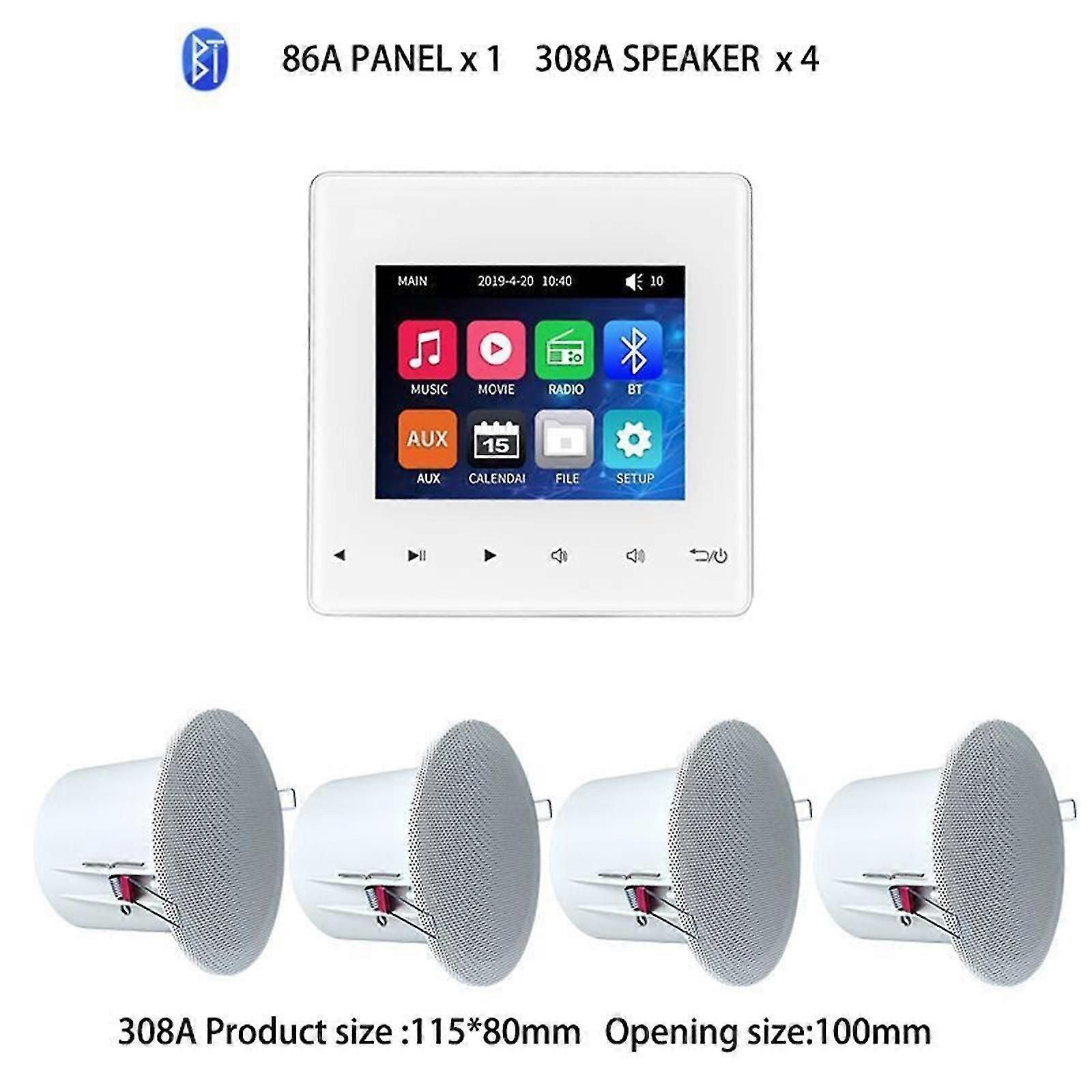

308A Specification:
3'' Fashion Ceiling Speaker
Moisture-proof plastic ceiling speaker with cover
Power: 10W/8
Sensitivity: 89dB
3'' Full range speaker driver
Plastic case with rear cover
Installation Cutout Size: 100mm
Product Size: 115x80mm
Net Weight: 340g
Gross Weight: 420g
